Electric Silicon Steel Transformer Center leg Cut-to-length Line

Center leg cut-to-length machine is a specialized equipment to produce the core of transformer. This equipment is with PCL control and Touch Panel, easy to operate, high automation degree and precision. Total machine use multiple sets of AC servo system, easy to maintain and less field area.

Wechat

Collect
商品说明

Processing range of core cutting machine

Length of cut240~1500mm
Core steel width30~300mm
Core steel thickness0.23~0.35mm

Processing tolerance for cutting machine

Cutting length tolerance≤±0.15mm
Angle≤±0.025o
Burr≤0.02mm

Coil standard of transformer core cutting machine

Width tolerance≤±0.1mm
Burr≤0.03mm
S°tolerance≤0.2mm/2m

Core cutting machine productivity

Feeding speed0~150m/min
Shear efficiencyAbout 45 piece/min (without punching)

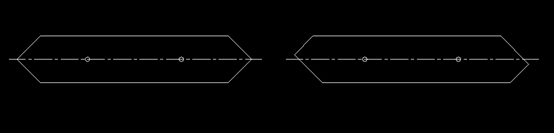

Transformer cutting line type processing

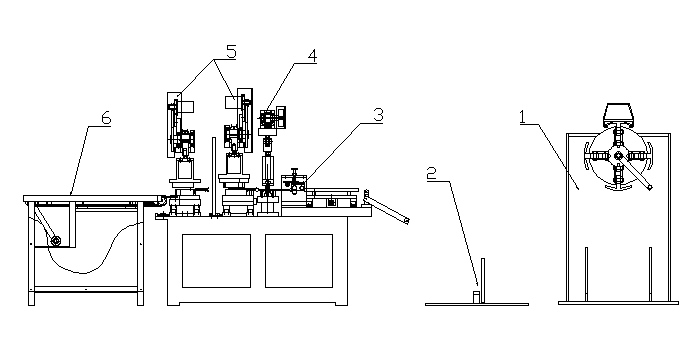

Lamination core cutting machine equipment drawing



商品参数

Payment & Delivery

Payment term : L/C,T/T,Western Union

Delivery time : 90 working days after advance

Guarantee: The guarantee period shall be 12 months counting from the date of signing the Acceptance Report of this machine at the end-user’s site，but no longer than 14 months from the date of delivery.

What is YIBO?

8A Class Transformer Home with a full solution for the Transformer Industry

1, A real manufacturer with complete in-house facilities and passed ISO9001:2020 quality control system.

2, A professional R&D Center, having collaboration with well-know Shandong University.

3. A top performance company Certificated with International Standards like ISO, CE, SGS and BV etc.

4, A better cost-efficient supplier , all key components are international brands like Simens, Schneider and Mitsubishi etc.

5, A reliable business partner, served for  CASC,CRRC,CASDY,ABB,DELIXI, EATON, RITZ,TENGEN, Russia Military Enterprise etc in past 23 years.

6. A factory has passed the global TOP 500 enterprise clients inspection.

7. A market share in China is over 85% and Top 3 in electrical equipment field.

8. A have mainly manufacture the whole of electrical equipment and technical output service for decades.

Q1: How to grantee the quality ?

The quality is approved by national certificate ,several senior inspection personnel ,the brand material supplier ensure the safety and reliability of everything from storage to finished the goods .

Q2: Do you provide overseas installation and training ?

A: It’s optional .Our company will provide the guidance and videos for installation and commissioning.

If you need ,we can send engineers for for overseas installation and training.

Q3: How long is the warranty ?

A:The warranty period is 12 months .During Any problems ,our company will respond within 24 hours .
