The Transformer core stacking table is mainly suitable for core stacking and 90 degree turning directly after the completion of stacking. It Adopt integral mesa and box type base, high structure steel, good flatness, simple appearance. The main hydraulic station is arranged in the box base with compact structure.The hydraulic control one-way valve is installed in the system to ensure that the load does not shift in any hovering position.The adjustable bracket has the function of turning over, and the width can be adjusted randomly through the left and right screw drive pair, which is convenient to use.

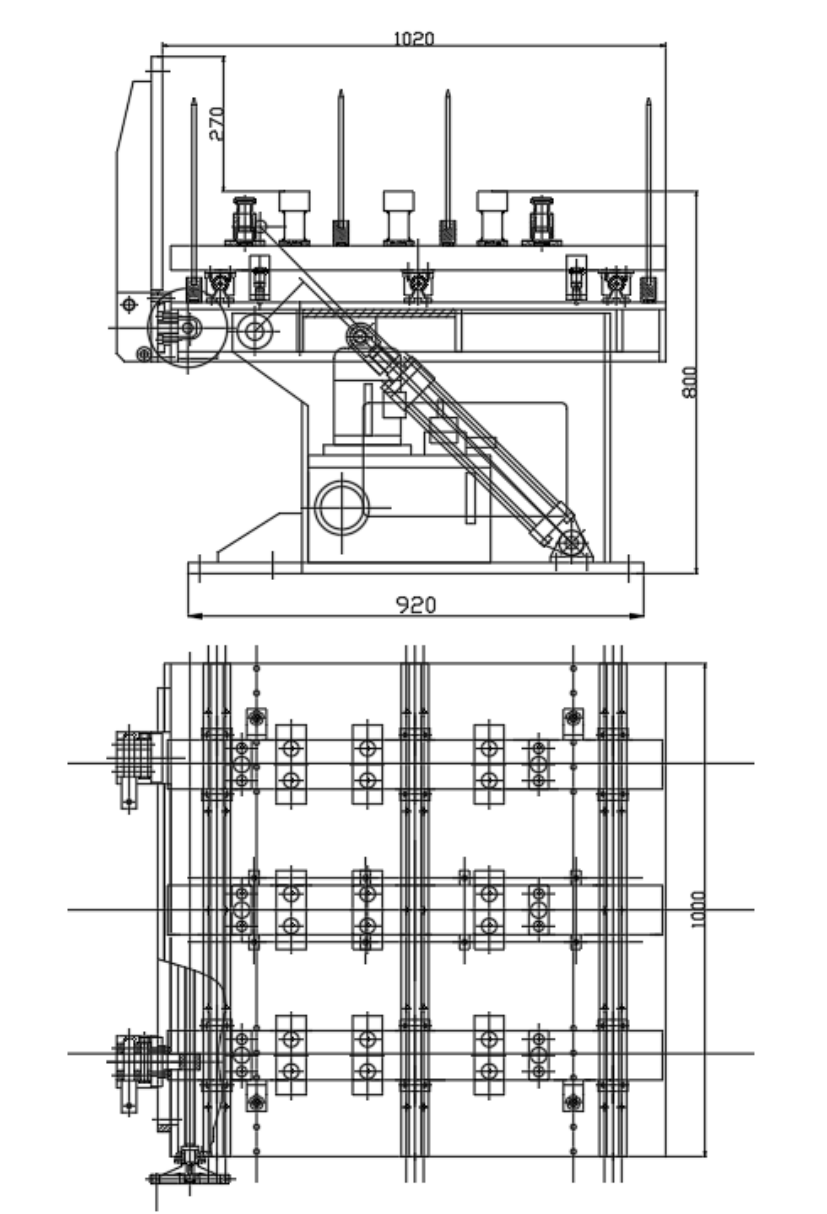

Main parameter

The load bearing 1,000kgs or customized

Table size: 1000 (L) ×1000 (W) mm

Table height: 800mm

Working table running Angle: 0–90 degrees, any position can hover

Operating speed: 90° / 45 seconds (adjustable)

Hydraulic working pressure: Max 21 Mpa

Weight of equipment: about 2000 kg

Payment & Delivery

Payment term : L/C,T/T,Western Union

Delivery time : 90 working days after advance

Guarantee: The guarantee period shall be 12 months counting from the date of signing the Acceptance Report of this machine at the end-user’s site，but no longer than 14 months from the date of delivery.

What is YIBO?

8A Class Transformer Home with a full solution for the Transformer Industry

1, A real manufacturer with complete in-house facilities and passed ISO9001:2020 quality control system.

2, A professional R&D Center, having collaboration with well-know Shandong University.

3. A top performance company Certificated with International Standards like ISO, CE, SGS and BV etc.

4, A better cost-efficient supplier , all key components are international brands like Simens, Schneider and Mitsubishi etc.

5, A reliable business partner, served for  CASC,CRRC,CASDY,ABB,DELIXI, EATON, RITZ,TENGEN, Russia Military Enterprise etc in past 23 years.

6. A factory has passed the global TOP 500 enterprise clients inspection.

7. A market share in China is over 85% and Top 3 in electrical equipment field.

8. A have mainly manufacture the whole of electrical equipment and technical output service for decades.

Q1: How to grantee the quality ?

The quality is approved by national certificate ,several senior inspection personnel ,the brand material supplier ensure the safety and reliability of everything from storage to finished the goods .

Q2:Do you provide overseas installation and training ?

A: It’s optional .Our company will provide the guidance and videos for installation and commissioning.

If you need ,we can send engineers for for overseas installation and training.

Q3:How long is the warranty ?

A:The warranty period is 12 months .During Any problems ,our company will respond within 24 hours .
