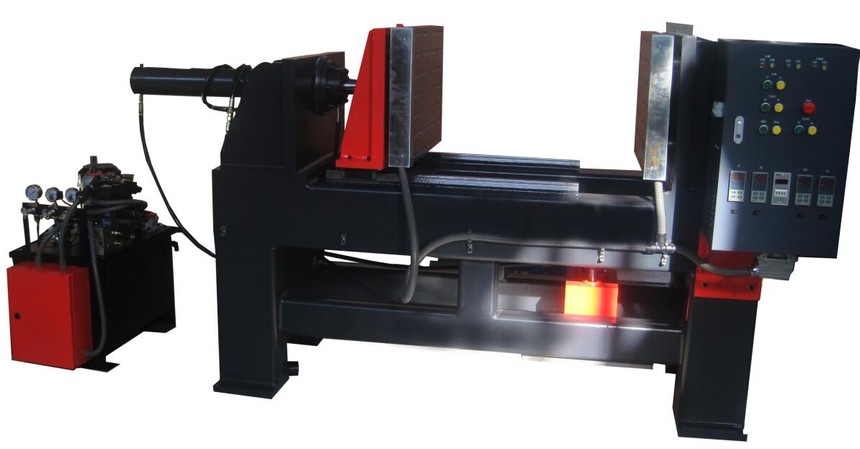

APG Hydraulic Clamping Machine (Standard Small) | Epoxy Resin Molding Press for Transformer CT/PT

The APG (Advanced Press Gelation) process demands extreme stability and precise thermal control. Our Standard Small APG Clamping Machine is built with a heavy-duty Q235 steel frame, heat-treated to relieve welding stress, ensuring zero deformation during long-term operation. The integrated hydraulic system offers smooth clamping (2.4 m/min) and opening (3.3 m/min), while the 660x500mm heating plates provide uniform temperature distribution (12KW power). With a flexible plate distance (145-965mm) and optional tilting, it accommodates complex molds for electrical insulation parts. The general-purpose power cabinet ensures easy maintenance and global spare-part availability.

Collect
Description

1. Core Advantages & Features

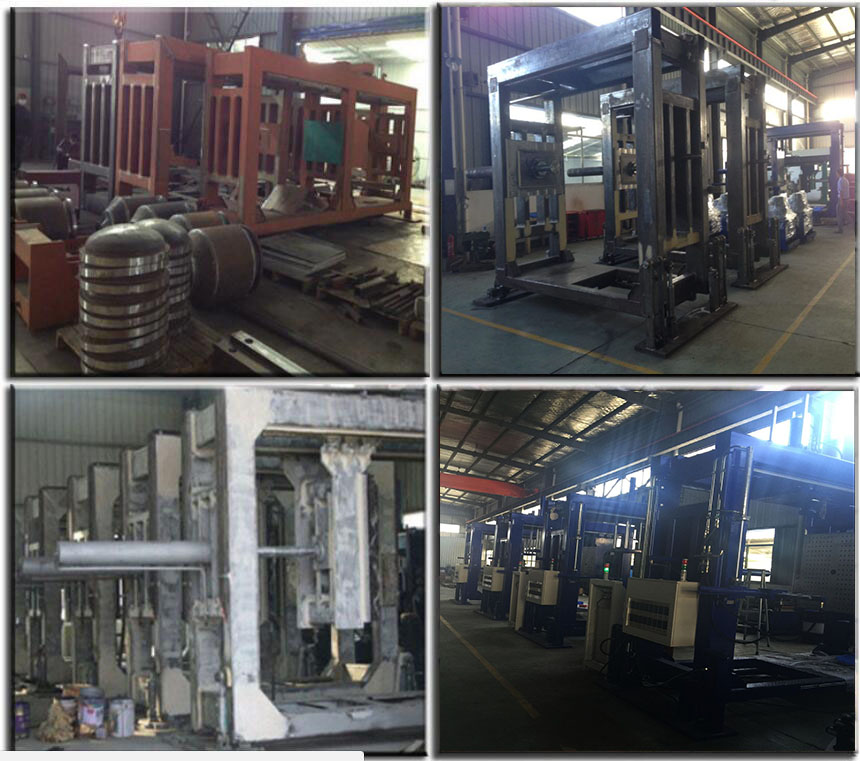

① Ultra-Stable Frame Structure

Constructed from Q235 #10mm thickness steel, with heat treatment to release welding internal stress. CNC lathe processing guarantees high installation precision, providing a stable platform for precise epoxy gelation.

② Integrated Hydraulic & Power System

Hydraulic power pack is designed directly on the machine for easy transport and installation. Adopts reliable, universal electrical elements in the power cabinet—durable, easy to maintain, and globally recognized.

③ Precision Heating & Tilting

Equipped with 12KW heating plates (660x500mm) for consistent resin curing. Adjustable tilting degree (0° or 7°) meets specific APG mold requirements. Clamping force of 150KN ensures tight mold sealing.

④ Operator-Friendly & Compact

Independent control panel with clear indicators. Compact dimensions (2920x820x1450mm) fit standard workshops. Manual/automatic modes supported via 24V induction (compatible with production lines).

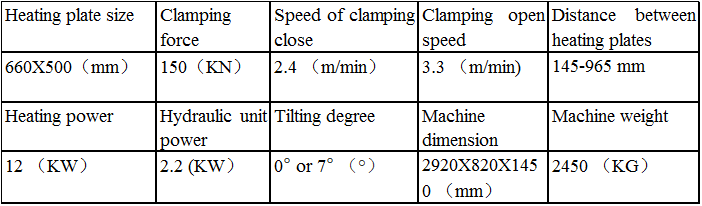

2. Key Technical Parameters

Parameter

Specification

Heating Plate Size

660 × 500 mm

Clamping Force

150 KN

Speed of Clamping Close

2.4 m/min

Clamping Open Speed

3.3 m/min

Distance Between Heating Plates

145 – 965 mm (Adjustable)

Heating Power

12 KW

Hydraulic Unit Power

2.2 KW

Tilting Degree

0° or 7° (Optional)

Machine Dimension (L×W×H)

2920 × 820 × 1450 mm

Machine Weight

2450 KG

Frame Material

Q235 Steel, 10mm Thick (Heat-Treated)

Application

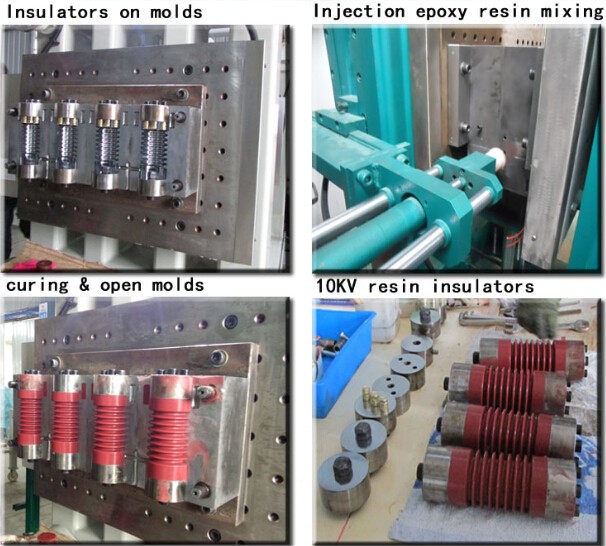

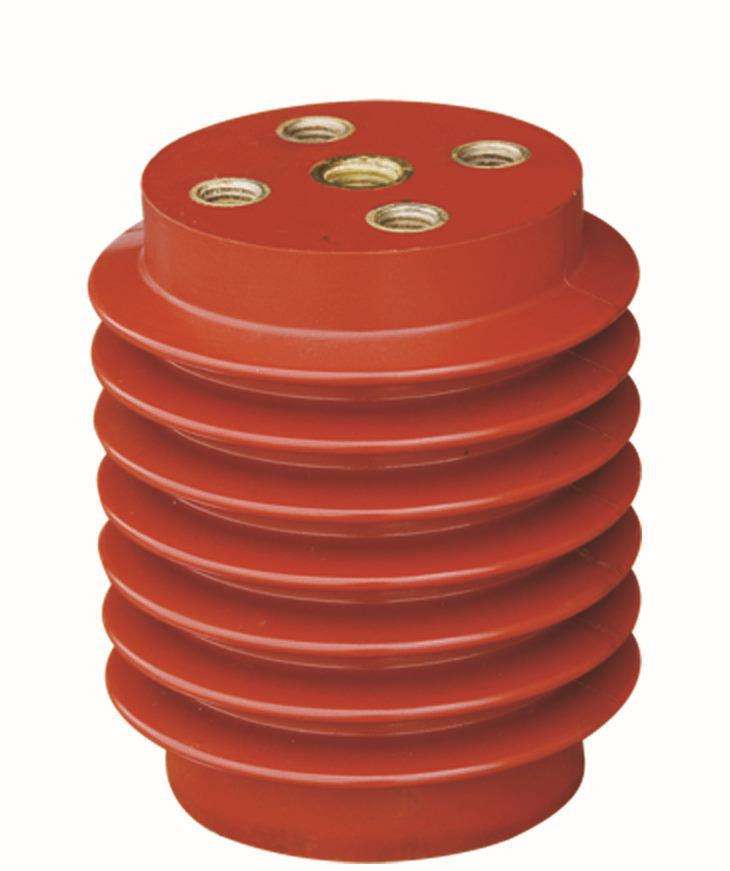

APG Molding for Transformer CT/PT, Bushings, Insulators

3. Structural Details

  • Frame: Welded Q235 steel, stress-relieved, precision machined.

  • Hydraulics: Integrated 2.2KW unit, smooth action, easy access.

  • Control Cabinet: Universal electric elements, durable, simple wiring.

  • Heating: Dual plates with 12KW total power, uniform heat.

  • Tilting: Fixed 0° standard, 7° option for angled molding.

4. Application Scope

  • Transformer Industry: APG clamping for current transformers (CT), potential transformers (PT), bushings.

  • Electrical Insulation: Epoxy resin casting for switchgear, insulators.

  • R&D / Small Batch: Standard small size fits labs and specialized production.

5. Manufacturer & Service (YIBO Machinery)

  • Experience: 23+ years, ISO9001:2020, CE/SGS/BV certified. Top 3 in Chinese electrical equipment, 85%+ market share.

  • Clients: CASC, CRRC, ABB, DELIXI, EATON, RITZ, TENGEN, Russia Military Enterprise.

  • Warranty: 12 months (from Acceptance Report, max 14 months from delivery).

  • Delivery: ~90 working days after advance.

  • Payment: L/C, T/T, Western Union.

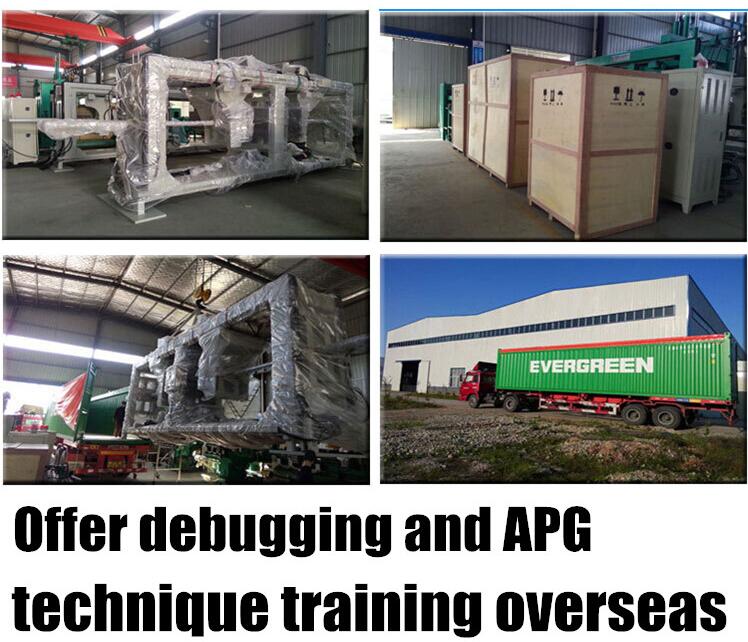

  • Support: Optional overseas installation & training, 24-hour response, video guidance.

→ Contact our engineering team for custom heating plate sizes, tilting angles, or APG production line integration.
