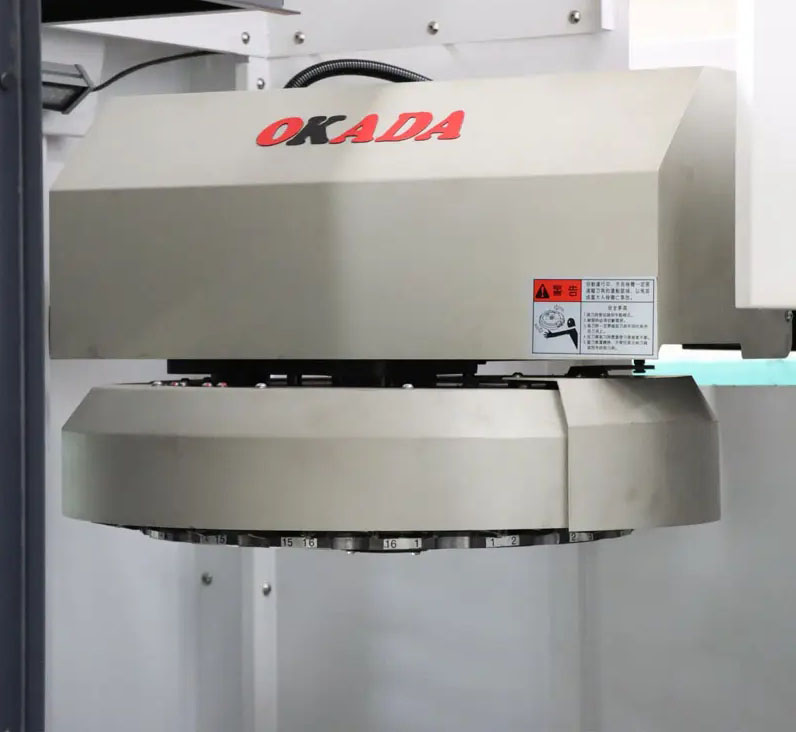

Fixed Gantry CNC Machining Center GMC Series | Heavy-Duty Vertical Milling, Drilling & Boring (BT40/BT50)

Engineered for mold makers and heavy machinery manufacturers, the GMC Series combines a fixed gantry frame with a fully connected beam and double-column layout to eliminate vibration and maintain micron-level accuracy under heavy cutting loads. Three models cover X-axis travels from 1300mm to 2000mm, with table capacities up to 3000kg.

Equipped with C3-grade ground ball screws, 45mm roller guides (X/Y) and hard rails (Z), the machine ensures rapid traverses up to 24m/min and repeatability of ±0.004mm (JIS standard). Belt-type spindles (BT40/BT50, 6000–8000rpm) are driven by SYNTEC or FANUC servo systems, handling everything from aggressive roughing to fine finishing in one setup.

Key Highlights:

Ultra-Rigid Fixed Gantry: Integral beam, double columns, and bed connection for maximum anti-vibration and thermal stability.
Precision Motion: C3 ground screws + 45 roller guides deliver ±0.005/300mm positioning and ±0.004mm repeatability.
Heavy-Duty Cutting: Hard rail Z-axis, 15/18.5KW spindle motor, BT50 option for demanding roughing.
Versatile Machining: Mill, drill, tap, bore — ideal for large molds, dies, and structural components.

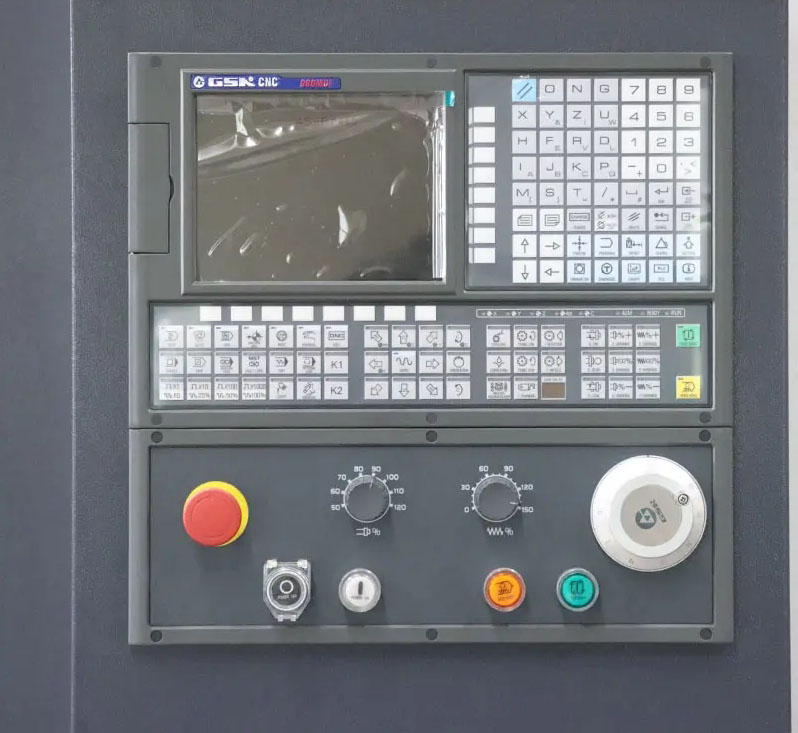

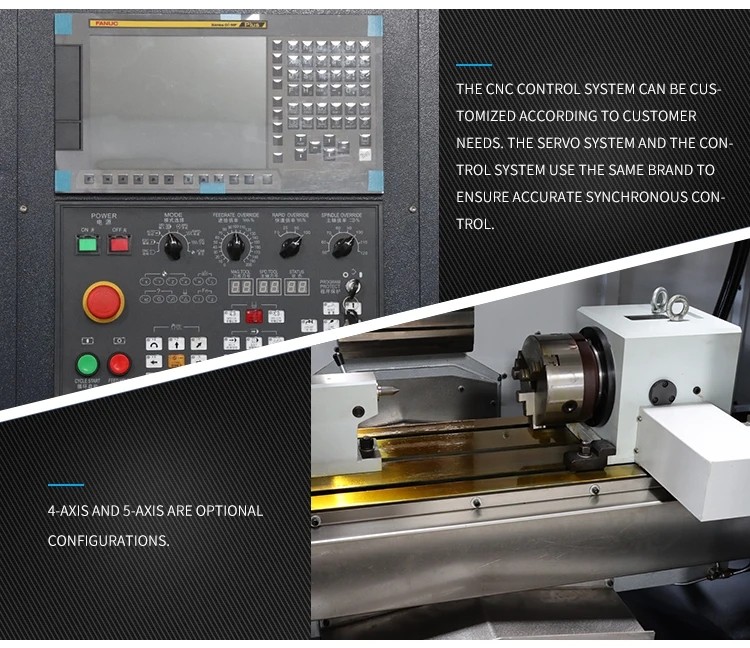

Global CNC Options: SYNTEC (standard) or FANUC control, 24m/min rapid traverse, 1–10m/min cutting feed.

Collect

Product Description

1. Overview

The GMC Series Fixed Gantry CNC Vertical Machining Center is designed for manufacturers requiring exceptional rigidity and precision on large workpieces. The fixed gantry frame — with beams, double columns, and machine sides rigidly connected — provides a stable platform for both heavy roughing and high-accuracy finishing. It efficiently performs milling, drilling, tapping, and boring, making it indispensable in mold & die, energy equipment, aerospace jigs, and general machinery production.

2. Model Comparison & Key Specifications

Parameter	GMC-1313	GMC-1613	GMC-2016
X / Y / Z Travel	1300 / 1300 / 700 mm	1600 / 1300 / 700 mm	2000 / 1600 / 700 mm
Distance Spindle to Table (BT40)	100–800 mm	100–800 mm	100–800 mm
Distance Spindle to Table (BT50)	65–765 mm	65–765 mm	65–765 mm
Gantry Width	1350 mm	1350 mm	1650 mm
Table Size (L×W)	1300×1000 mm	1700×1000 mm	2200×1300 mm
Max. Table Load	1500 Kg	2000 Kg	3000 Kg
T-Slot (Qty-Width-Pitch)	5×18×190 mm	5×18×190 mm	7×22×190 mm
X / Y / Z Rapid Traverse	24 / 24 / 24 m/min	24 / 20 / 20 m/min	20 / 20 / 20 m/min
Cutting Feed Range	1–10 m/min	1–10 m/min	1–10 m/min
Ball Screw (X/Y/Z)	4012 C3 / 4012 C3 / 4012 C3	5012 C3 / 5012 C3 / 5012 C3	5012 C3 / 5012 C3 / 5012 C3
Guide Way (X/Y/Z)	45 Roller / 45 Roller / Hard Rail	45 Roller / 45 Roller / Hard Rail	45 Roller / 45 Roller / Hard Rail
Servo Motor Torque (SYNTEC)	28 / 18 / 18B N·m	28 / 18 / 18B N·m	28 / 28 / 28B N·m
Servo Motor (FANUC)	βiS22/22/22B	βiS30/22/22B	βiS30/30/30B
Spindle Type	Belt Drive BT40/50-150	Belt Drive BT40/50-150	Belt Drive BT40/50-150
Max. Spindle Speed	8000 (BT40) / 6000 (BT50) rpm	8000 / 6000 rpm	8000 / 6000 rpm
Main Motor Power (SYNTEC)	11 / 15 KW	15 / 18.5 KW	15 / 18.5 KW
Main Motor Power (FANUC)	βil12/10000	βil15/8000	βil15/8000
Positioning Accuracy (JIS)	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm
Repeatability (JIS)	±0.004 mm	±0.004 mm	±0.005 mm
Machine Weight (Approx.)	8000 Kg	10000 Kg	12000 Kg
Overall Dimensions (L×W×H)	3800×3000×2900 mm	4600×3000×2900 mm	5600×3300×2900 mm

3. Core Design Advantages

① Fixed Gantry Frame — Maximum Structural Rigidity

The integral connection between the beam, double columns, and both sides of the machine bed forms a closed-loop rigid frame. This design eliminates deflection under heavy cutting forces, suppresses vibration, and maintains geometric accuracy over years of operation. Ideal for large mold cavities and thick-plate machining.

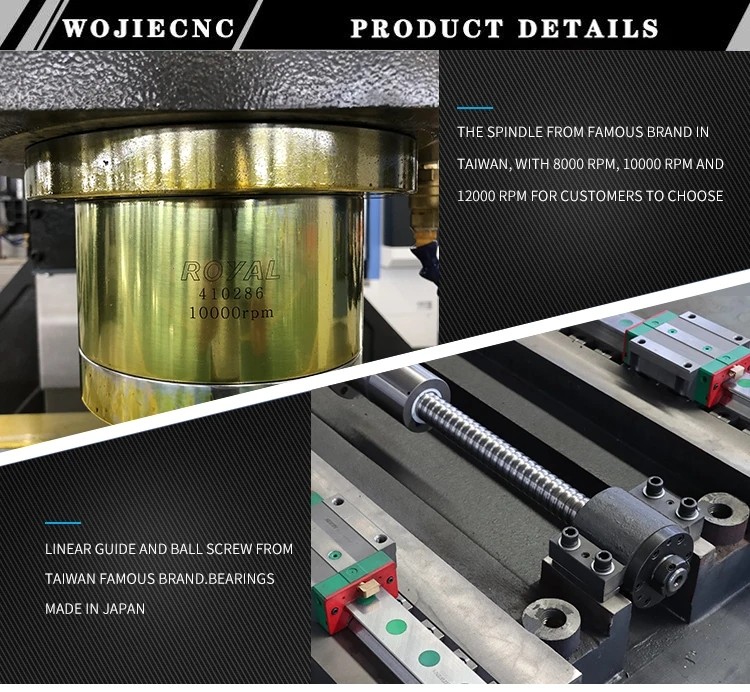

② Precision Transmission System

C3 Grade Ground Ball Screws (4012/5012) on all 3 axes ensure backlash-free motion and micron-level positioning.
45mm Roller Linear Guides on X and Y axes provide high load capacity and smooth rapid traverses up to 24m/min.
Hard Rail Z-Axis absorbs heavy cutting thrust, preventing spindle deflection during deep roughing.

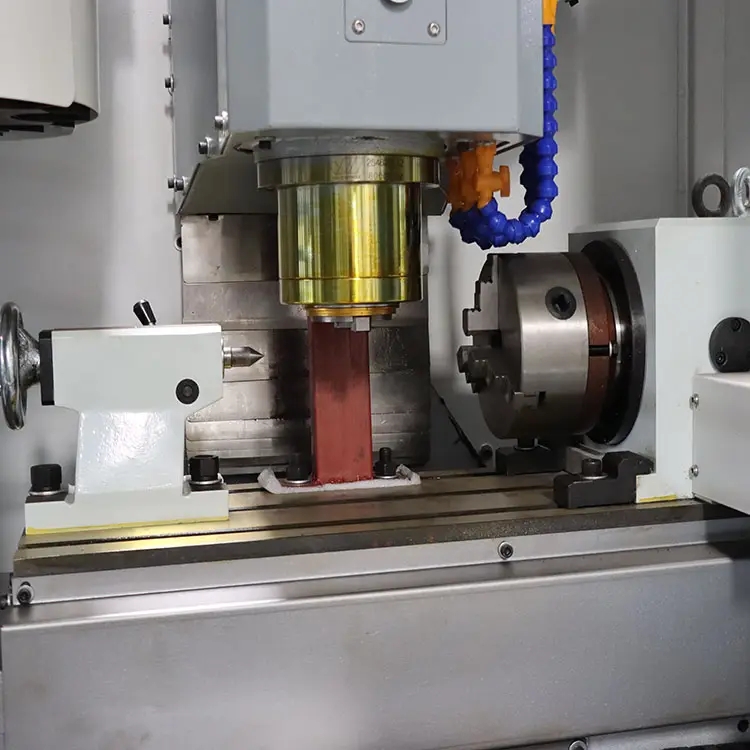

③ High-Performance Spindle Options

Belt-driven spindle with BT40 (8000rpm, 11–15KW) or BT50 (6000rpm, 15–18.5KW) taper. BT50 handles large-diameter cutters and heavy roughing; BT40 delivers high-speed finishing. SYNTEC or FANUC servo motors ensure consistent torque output.

④ Comprehensive Machining Capability

One machine performs roughing and finishing of milling, drilling, tapping, and boring. Eliminates multiple setups, reduces handling errors, and shortens lead times for complex parts.

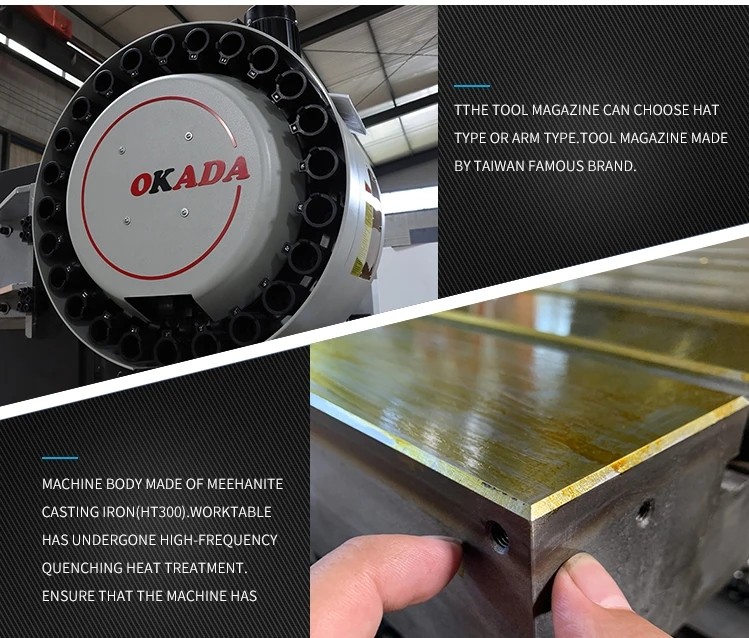

⑤ Reliable & Durable

Built for continuous industrial operation. Imported seals, precision-ground components, and robust castings ensure long service life with minimal maintenance.

4. Application Scope

Mold & Die Manufacturing: Large injection molds, die-casting molds, stamping dies, jigs, and fixtures.
Heavy Machinery: Equipment bases, structural frames, precision housings, and large brackets.
Energy & Infrastructure: Wind power components, transformer parts, valve bodies.
General Precision Machining: Multi-process parts requiring tight tolerances and superior surface finish.

→ Contact our engineering team for a detailed quotation, technical layout, or factory demonstration.
