1. Overview

The 3-in-1 Sheet Feeder is engineered to optimize the sheet metal stamping process by integrating three essential functions: uncoiling, straightening, and feeding. It eliminates the need for separate machines, reduces setup time, and ensures smooth, precise material flow into the press.

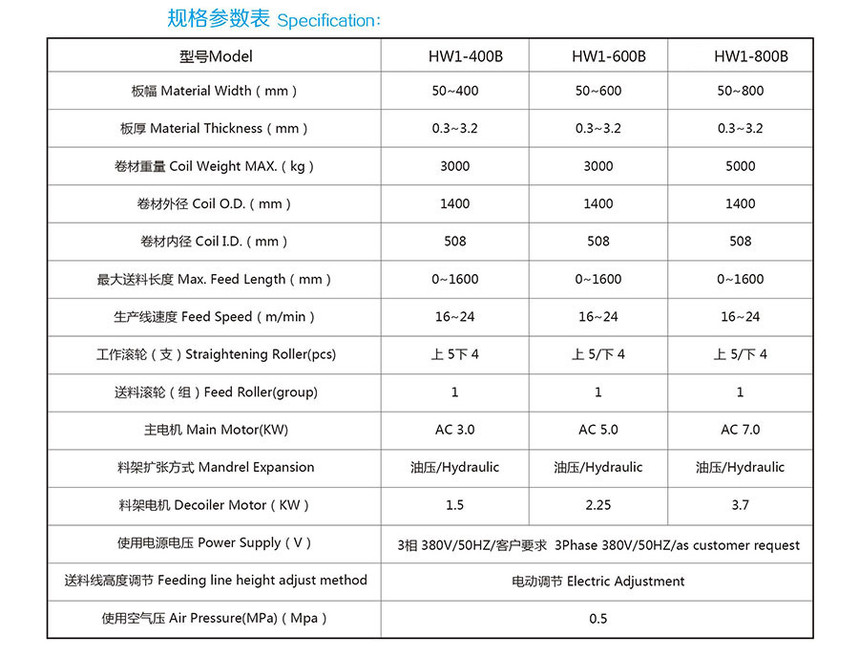

2. Key Performance Parameters (Example - Please adjust based on actual model)

3. Core Advantages

① Integrated Space-Saving Design

Combines uncoiler, straightener, and feeder into one unit. Reduces installation footprint and minimizes coil transfer issues.

② Precision Servo Feeding

Equipped with high-torque servo motor and NC controller. Ensures accurate feed length, loop control, and synchronization with the press machine.

③ Heavy-Duty Straightening

Hard chrome-plated straightening rollers eliminate coil curvature. Pneumatic pinch feeding rollers ensure stable gripping without scratching the material surface.

④ Easy Operation & Maintenance

Touchscreen interface for quick setup of feeding length and speed. Hydraulic mandrel expansion for easy coil loading. Safety covers and limit switches for operator protection.

4. Application Scope

• Press Stamping Lines: For automotive, appliance, and hardware parts.

• Punching & Bending: Feeding metal strips into punching or bending machines.

• Metal Fabrication: Suitable for steel, stainless steel, aluminum, and copper coils.

5. Quality Assurance & Service

• Warranty: 12 months from the date of Acceptance Report signing (max 14 months from delivery).

• Installation: Optional overseas installation and commissioning by engineers.

• Support: 24-hour response for technical issues.

• Manufacturer: YIBO Machinery Co., Ltd. (ISO9001, SGS certified, 85%+ China market share, serving ABB, CRRC, EATON, etc.).

→ Contact our engineering team for a detailed quotation and technical layout.
