Automatic HV/LV Transformer Coil Winding Machine ZPX800 (800mm Transverse) for Copper Wire

The ZPX800 Automatic HV/LV Copper Wire Transformer Coil Winding Machine integrates automatic wire laying, layer insulation, and stepless speed regulation. Designed for winding square and round coils (axial ≤850mm, OD ≤800mm), it handles flat wire up to 5×12mm and round wire 0.3-5.0mm. Equipped with Mitsubishi PLC, HMI, and servo motors, it ensures 0.01mm min. step precision and 2000N.M driving torque. Perfect for distribution transformer manufacturing with strong force, full functions, and intelligent control.


Collect
Description


1. Overview

The ZPX800 Automatic HV/LV Copper Wire Transformer Coil Winding Machine adopts advanced automatic winding displacement and tension technologies. It is especially suitable for winding square and round coils used in small and medium-sized distribution transformers and similar products. The machine combines a main winding motor, automatic wire laying unit, layer insulation decoiler, tension-adjustable decoiler, pneumatic system, and PLC-based control with servo motors. Featuring high automation, full functions, and strong driving force, it delivers precise and efficient coil production.

2. Key Technical Parameters

Parameter

Specification

Model

ZPX800

Transverse / Coil OD

≤800 mm

Axial Height

≤850 mm

Center Height

850 mm

Spindle Length

950 mm

Max. Working Torque

2000 N·M

Winding Speed

0 – 160 RPM (Variable frequency, stepless)

Max. Load

700 kg

Winding Power

4 kW

Wire Size (Flat)

Max. 5 × 12 mm

Wire Size (Round)

Dia. 0.3 – 5.0 mm

Auto Wire Arrangement

Min. step 0.01 mm (adjustable diameter)

Counting Mode

5-digit, 12-segment preset, reversible, power-off memory

Max. Turns Preset

9999.9

Counting Range

0 – 9999.9

3. Core Advantages & Features

① Automatic Wire Displacement & Tension

Automatic wire laying unit with 0.01mm min. step ensures precise winding. Tension-adjustable decoiler maintains consistent wire tightness for both square and round coils.

② Strong Driving & Stepless Speed

Max. 2000 N·M torque, 4kW power, 0-160 RPM stepless speed regulation via variable frequency. Electromagnetic braking 3-phase synchronous motor (Wannan) for reliable stopping.

③ Intelligent Mitsubishi Control

Mitsubishi PLC, HMI touch screen, servo systems, and RS-485/422 communication. 5-digit counting with 12-segment preset, total turns, reversible counting, and power-off memory.

④ Versatile Coil Compatibility

Handles flat wire (max 5×12mm) and round wire (0.3-5.0mm). Suitable for HV/LV coils, axial ≤850mm, OD ≤800mm, max load 700kg. Layer insulation unit integrated.

⑤ Robust Construction & Pneumatics

Main frame, winding unit, insulation decoiler, pneumatic system. Foot-touch switch (Taiwan), AC contactor (Delixi/Schneider). Stable 850mm center height, 950mm spindle.

4. Main Components & Brands

Component

Brand / Specification

Transformer

Mitsubishi (Japan)

PLC (Programmable Controller)

Mitsubishi (Japan)

HMI (Touch Screen)

Mitsubishi (Japan)

Servo / Communication Modules

Mitsubishi (Japan)

Photonics Encoder

Shanghai

Winding Motor (Electromagnetic Braking)

Wannan

Foot-Touch Switch

Taiwan

AC Contactor

Delixi / Schneider

Main Parts

Main frame, winding unit, auto wire laying, insulation decoiler, PLC control, pneumatic system

5. Application Scope

  • Small & medium distribution transformer HV/LV coils

  • Square and round coil winding

  • Copper / aluminum wire (flat & round)

  • Layer insulation winding

  • Electrical equipment manufacturing (CASC, CRRC, ABB, DELIXI, EATON, etc.)

6. Manufacturer & After-Sales

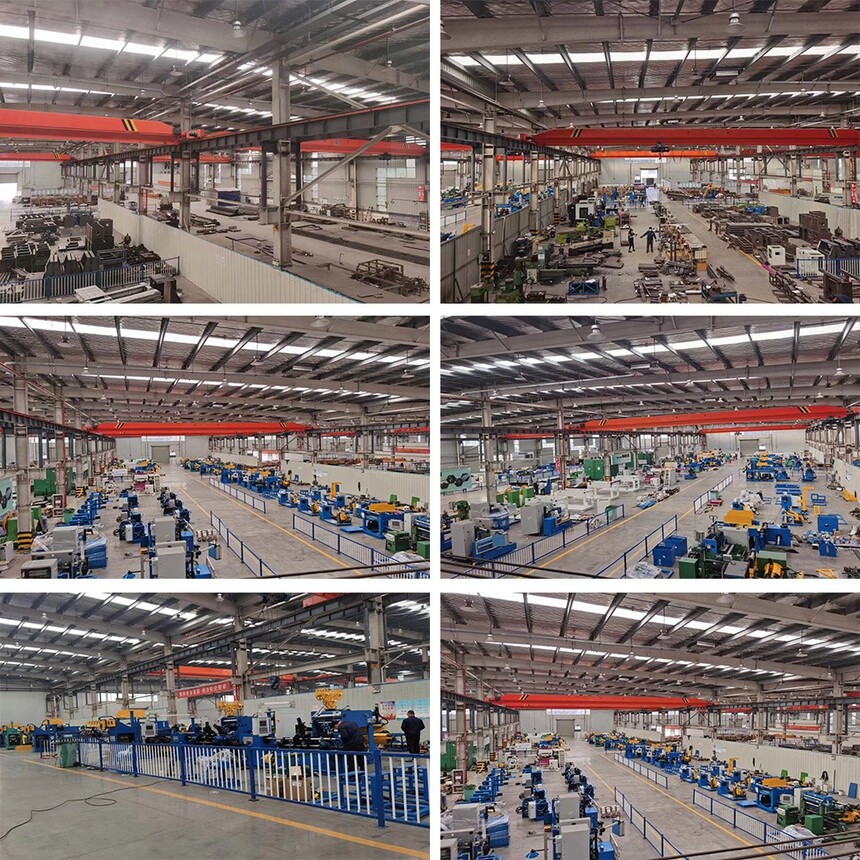

YIBO Machinery Co., Ltd. – 25+ years manufacturing, 3 branch factories, 10,000+ sqm. Top 3 in electrical equipment field, 85%+ China market share. Certified by global Top 500 clients. ISO9001 & SGS.

  • Warranty: 12 months (on-site or video training, free components during warranty).

  • Support: Lifelong technical support, global export, one-stop service.

→ Contact our engineering team for a detailed quotation, technical layout, or factory demonstration.
