Servo HMI APG Clamping Machine (600×800 to 1200×1000mm) for 11-36kV Epoxy Resin Molding

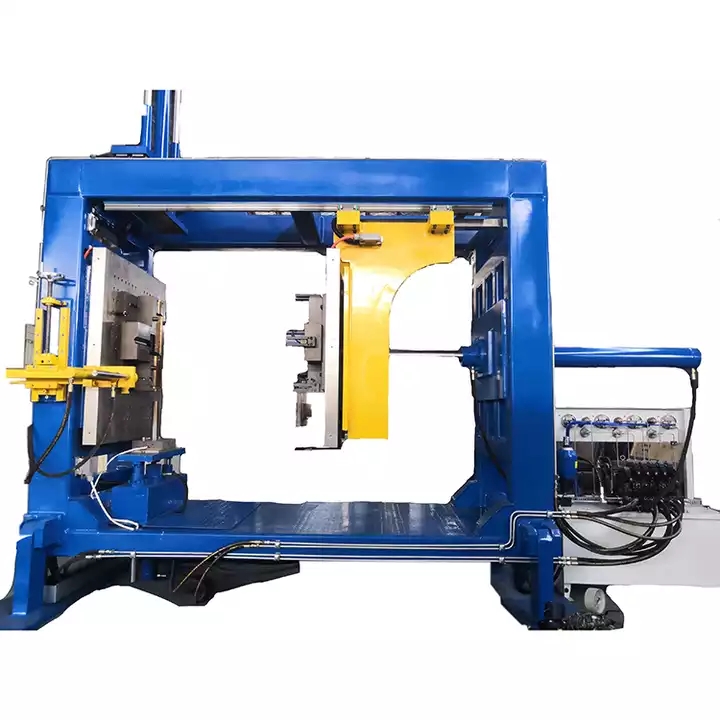

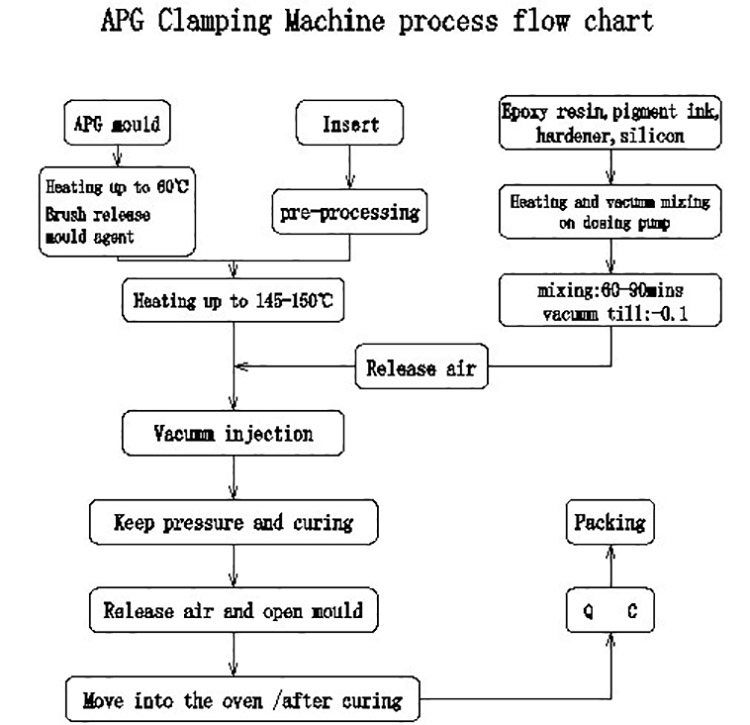

The Servo HMI APG (Advanced Pressure Gelation) Clamping Machine is a heavy-duty, fully automatic solution for manufacturing medium-to-high voltage electrical insulation components. Engineered for 11-36kV applications—including current transformers (CT), voltage transformers (VT), bushings, insulators, spouts, and SF6 switchgear covers—it delivers precision molding with servo-driven hydraulic control and PLC touch-screen intelligence.

Featuring customizable clamp plate sizes (min. 600×800mm, max 1200×1000mm), adjustable upper/lower core-pulling strokes, and the ability to store over 100 product recipes, this machine ensures repeatable high quality and maximum efficiency. Its robust frame, automatic heating (up to 24KW), and auto-setting hydraulic/valve systems make it ideal for pole-mounted transformers and industrial epoxy resin casting.


Collect
Description

1. Core Advantages & Features

① Servo & PLC Intelligence

Full automatic design with servo motor control, PLC, and HMI touch screen. Stores 100+ product data sets. Auto start, heating, hydraulic pressure, temperature, and valve flow settings ensure hands-off operation.

② Flexible APG Molding

Handles 11-36kV epoxy resin products: CT, VT, bushings, contact boxes, SF6 covers, bending plates. Clamp plates customizable (600×800mm to 1200×1000mm); upper/lower core distance tailored to product. Foundation pit required if lower core travel >500mm.

③ High Force & Precision

Clamping force 200–220KN (up to 24T), stroke 240–1250mm. Horizontal tilting 0-5°, mould load 2T. Servo control guarantees stable pressure and dimensional accuracy.

④ Robust Heating & Hydraulics

Heating power 8–24KW (auto clamp plate heating). Hydraulic power pack 5.5–7.5KW, max 160 L/min flow. Automatic valve flow control for optimal gelation.

⑤ Heavy-Duty Construction

Welded steel frame (customizable blue), weights 3800–7100KG. Built for continuous industrial production with minimal maintenance.

2. Key Technical Parameters (Representative Models)

Parameter

APG-865

APG-888

APG-898

APG-1210

Custom (e.g. 24T)

Clamping Plate

800×600mm

800×800mm

1000×1000mm

1000×1200mm

Up to 1200×1000mm

Clamping Force

200KN

200KN

220KN

220KN

24T (240KN)

Upper/Lower Core-Pulling

500/350mm

800/500mm

800/500mm

900/800mm

Customizable

Clamp Plate Stroke

—

—

—

—

240–1250mm

Heating Power

8KW

8KW

8KW

8KW

12–24KW

Hydraulic Power

—

—

—

—

5.5–7.5KW

Weight

3800KG

4200KG

6200KG

7100KG

~5300KG

Outline Dimension

3900×1300×3140mm

3900×1300×3140mm

4700×1300×3800mm

4780×1300×3800mm

3400×1600×3100mm

Control

PLC + HMI (100+ recipes)

Same

Same

Same

Servo + PLC

Tilting Angle

—

—

—

—

0–5°

Mould Load

—

—

—

—

2T

3. Main Components

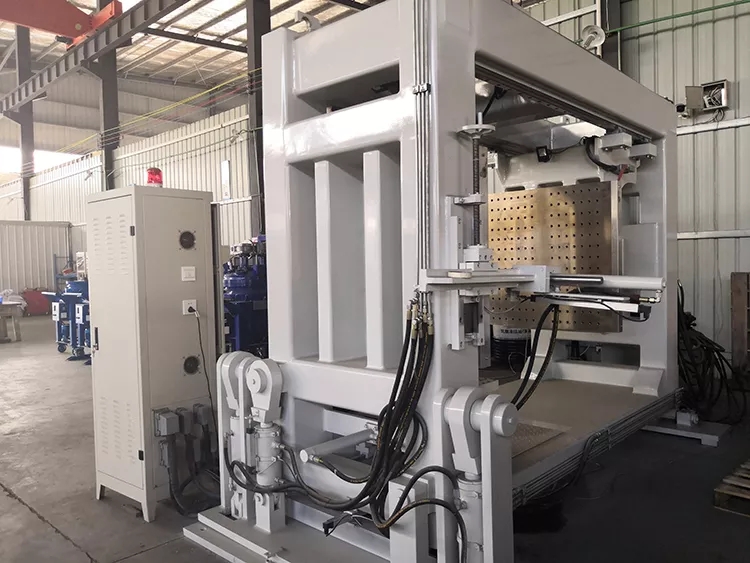

  • Main welded frame & clamping unit

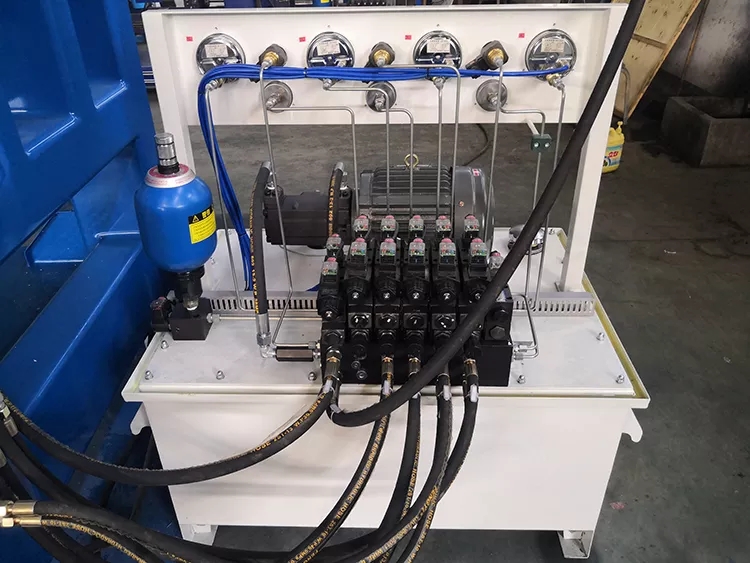

  • Servo motor & hydraulic power pack (auto pressure/flow)

  • Upper & lower core pullers (custom strokes)

  • Heating system (clamp plates)

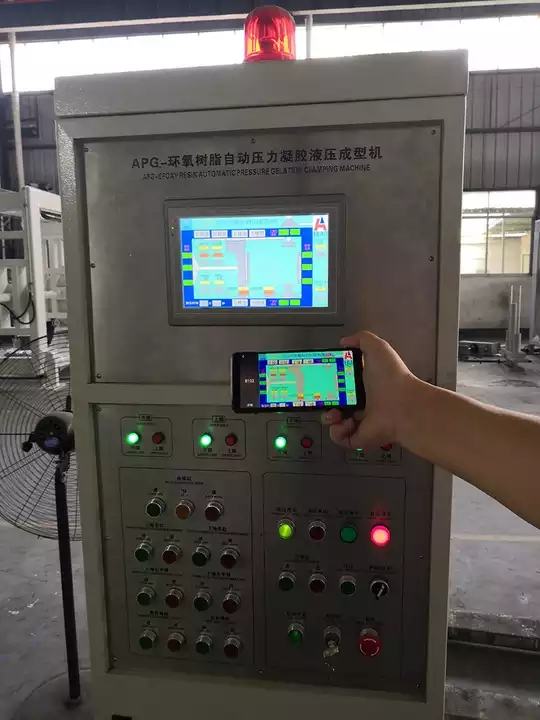

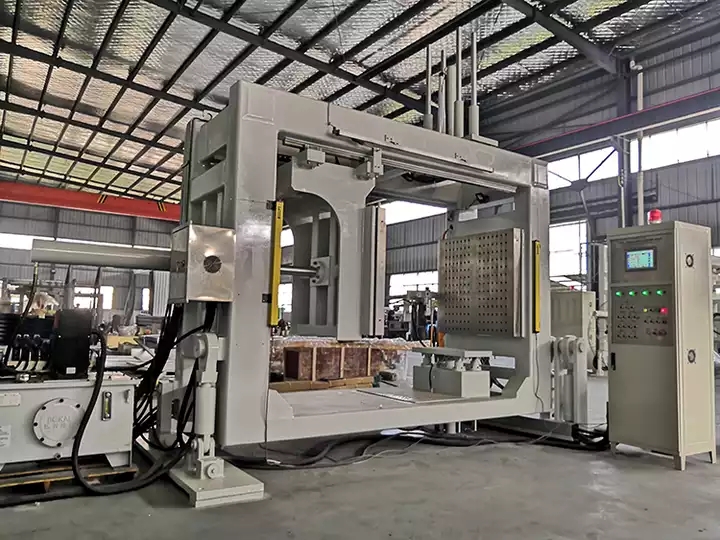

  • PLC control cabinet with HMI touch screen

  • Automatic valve & temperature modules

  • Pneumatic/hydraulic auxiliary systems

4. Application Scope

  • 11-36kV current transformers (CT) & voltage transformers (VT)

  • Epoxy resin bushings, insulators, contact boxes

  • SF6 gas-insulated switchgear components (covers, spouts)

  • Pole-mounted distribution transformer molding (12KV-1250A)

  • High-voltage electrical insulation casting

5. Manufacturer & Service

YIBO Machinery Co., Ltd. – 25+ years, ISO9001 & SGS. Trusted by CASC, CRRC, ABB, DELIXI, EATON.

  • 12-month warranty, on-site/video training, lifelong tech support.

  • Custom clamp plate sizes, core strokes, and foundation pit design available.

→ Request a detailed quotation, technical layout, or factory demonstration today.
